| Distribution boom type |

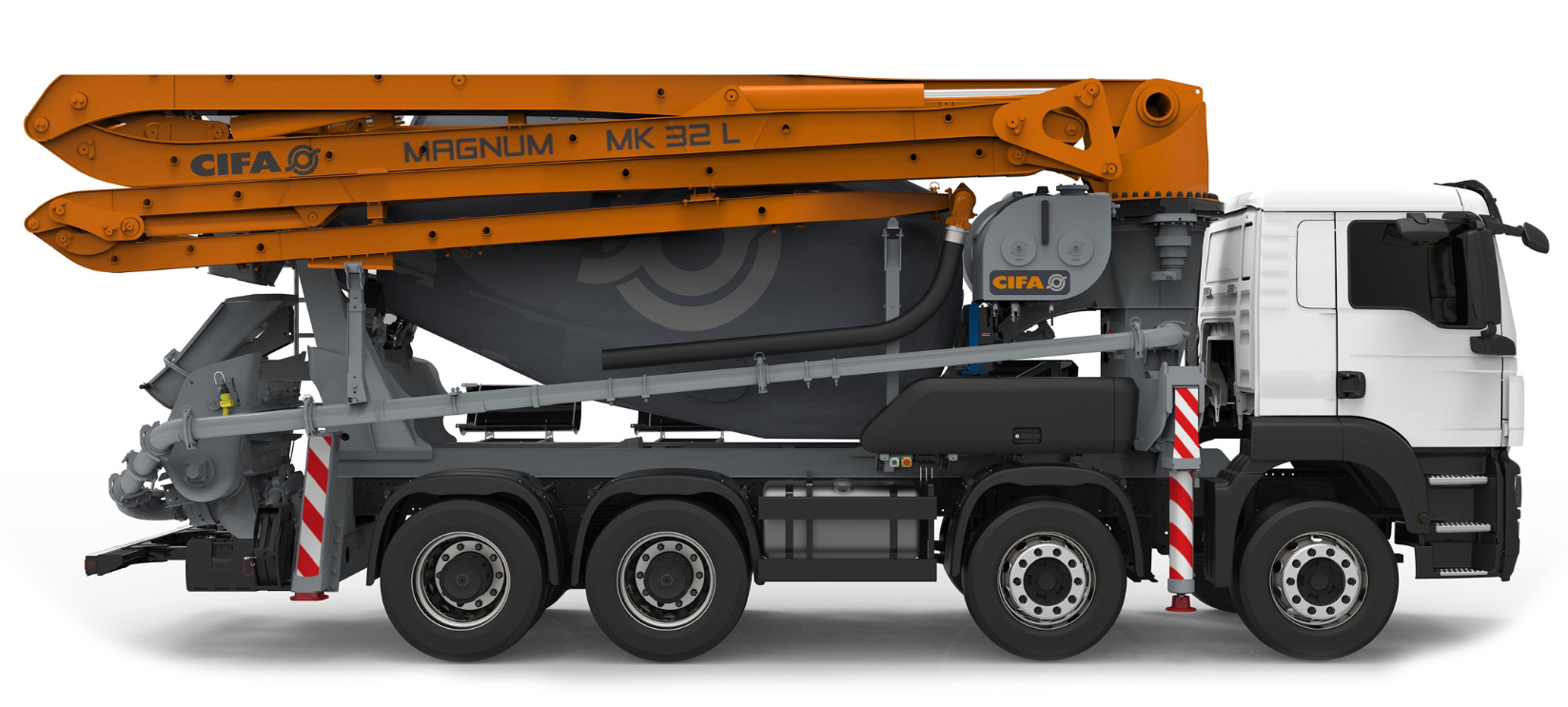

MK 32.4 L |
| Max. Vertical reach |
31.2 m |
| Max horizontal reach |
27.2 m |
| Mast elements / folding |
4 / Z |
| Pipelines |
100 mm double-walled |
| Min. Unfolding height |
7.37 m |
| Swivel range |
370 ° |
| Pump unit type |
PB 607 S7 |
PB 808 S7 |
| Max. Delivery rate |
61 m³ / h |
81 m³ / h |
| Max. Concrete pressure |
71 bar |
81 bar |
| Max. Strokes / min. |
32 |
43 |
| Delivery cylinder |
200 x 1,000 mm |
200 x 1,000 mm |
| S-pipe size |
7 inch |
7 inch |
| Hydraulic circuit |
open |
open |
| Tax system |
hydraulically |
hydraulically |
| Drum type |
RH 115 |
| Nominal filling |
9 m³ |
| Geom. Volume |
14.6 m³ |
| Degree of filling |
69% |
| Water tank |
800 liters |
