| Distribution boom type |

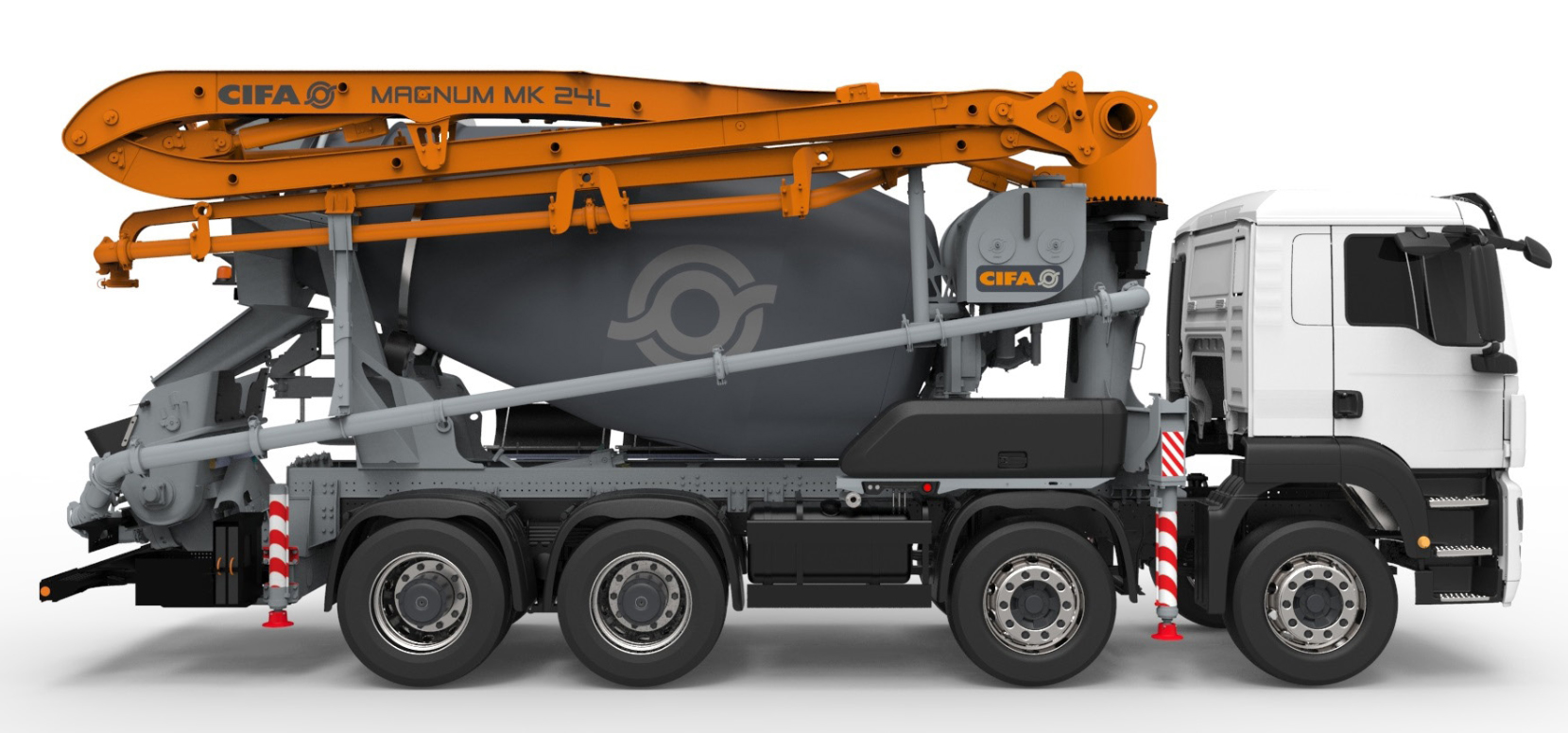

MK 24.3 L |
| Max. Vertical reach |
23.15 m |
| Max horizontal reach |
19.15 m |
| Mast elements / folding |
3 / Z |
| Pipelines |
100 mm double-walled |
| Min. Unfolding height |
6.6 m |
| Swivel range |
+/- 240 ° |
| Pump unit type |
PB 607 S7 |
| Max. Delivery rate |
61 m³ / h |
| Max. Concrete pressure |
71 bar |
| Max. Strokes / min. |
32 |
| Delivery cylinder |
200 x 1,000 mm |
| S-pipe size |
7 inch |
| Hydraulic circuit |
open |
| Tax system |
hydraulically |
| Drum type |
RH 80 |
| Nominal filling |
7 m³ |
| Geom. Volume |
12.8 m³ |
| Degree of filling |
55% |
| Water tank |
600 liters |
